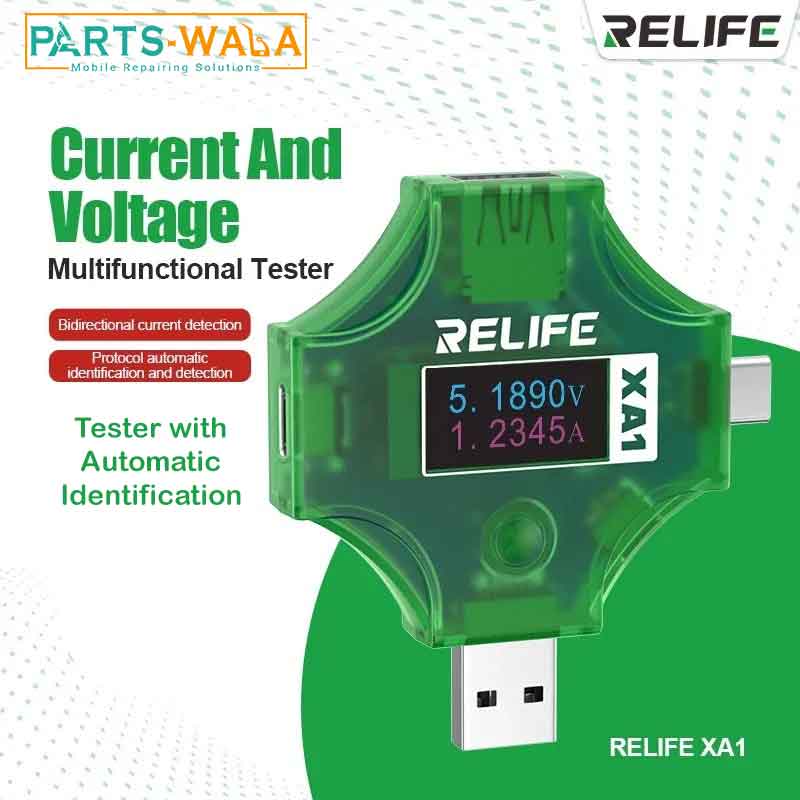

Relife XA1 Current and Voltage Multifunctional Tester with Automatic Identification

Features:

• Current and voltage multifunctional tester, bidirectional current detection, protocol automatic identification and detection

• Supports common fast charging protocols currently on the market,

• and supports PD, QC2.0, QC3.0, SCP, AP2.4A, and DCP fast charging identification detection

• Automatic identification and detection, covers automatic identification and detection of commonly used fast-charging protocols on the market, supports PD, QC2.0, QC3.0, SCP, AP2.4A, and DCP fast charging identification and detection through commonly used fast-charging protocols on the market

• Using a special measurement chip, both forward and reverse currents can be sampled and measured and can be plugged in reversely, the C port can be plugged into a charger or a mobile phone

• Supports one-click flipping of the display interface, and the interface direction can be switched at will, making it easy to cope with various positive and negative connection scenarios

• Turn off the screen with a button, the screen display can be turned off to avoid light pollution when used at high

• Easily test current, voltage, fast charge identification, and other parameters of various chargers, data cables, power banks, notebooks, mobile phones, Type-C digital devices, etc., display multiple parameters on the screen

• HD color screen display, real-time detection of charging voltage/current function and other parameter information

Specification:

• Brand: RELIFE

• Product name: Current and voltage multifunction tester

• Model: XA1

• Net weight: ≈20.5g

• Product Size: 67*62*12mm

• Package Size: 60*80*15mm

• Current: 5A

• Voltage range: 4V~25V

• Voltage resolution: 0.01V

• Current resolution: 0.01A

• Power statistics: Support Wh/Ah

• Capacity measurement range: 0~9999Ah

• Voltage accuracy: 1%

• Current accuracy: 1%

• Display: 160*80DPI; IPS screen

• Energy measurement range: 0~9999Wh

• Support detection protocol: PD; QC2.0; QC3.0; SCP; AP2.4A; DCP
