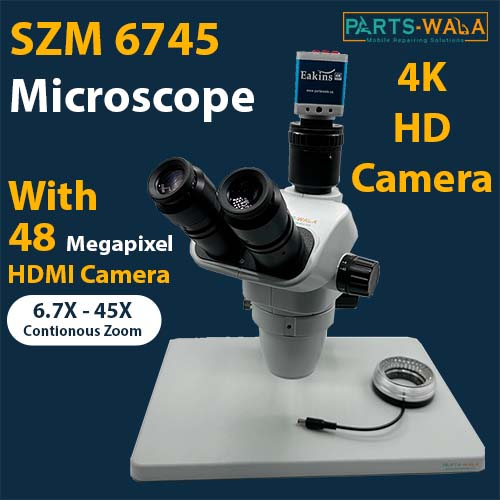

SZM 6745 Microscope 6.7X-45X Continuous Zoom With Eakins 48 Megapixel 4K HD HDMI Camera
₨ 95,000 ₨ 97,000
SZM 6745 Microscope 6.7X-45X Continuous Zoom With Eakins 48 Megapixel 4K HD HDMI Camera For Mobile Repairing
Product Specification
Video Link: https://bit.ly/3Jj7sT4
- Item Name: Trinocular Stereo Microscope
- Brand: SZM
- Model: SZM-6745
- Magnification: 6.7X-45X
- Eyepiece: High Eye Point Large Field Eyepiece WF10X/22mm (30mm)
- Zoom Objective: 0.67X-4.5x Continuous Zoom,The Objective zoom Ratio is 6:7:1,To Ensure The Parfocality Of the Image Plane
- Working Distance: 100mm (Effective Distance), Select Auxiliary Objective, Which Can Be Extended To 30mm-287mm
- Auxiliary Objective Lens: 0.5X/165mm
- Observation Head: 45* Tilt,360* Rotation,Interpupillary Distance 54-76mm,Bilateral Diopter Adjustment (+5)
- Focusing Bracket: Inner Diameter 76mm Column Aperture 32mm
- Base: B3 Base
- Lighting: Option Various LED Ring Lights
- Dimension: 200mm(W)X273mm(D)X240mm(H)
- Column Height: B3 Base Column Height-260MM
- Standard Size Base : 260*375MM
Camera Specification:
Sensor: A 1/2.8 SONY 2-megapixel import sensor.
Pixel size: 2.9µm X 2.9µm.
HDMI output: 1920*1080 60FPS.
Lens interface: C/CS.
Exposure: Automatic / manual.
Exposure compensation: support.
White balance: Automatic / manual, support for RGB adjustable.
Memory Max: 64GB.
Input voltage: DC: 5V.
Lineation: 16 lines, with adjustable color, thickness, and position.
Centre line: support.
Menu language: English / Chinese.
Telecontroller: Support for the remote control operation.
Net weight: 150g.
Rough weight: 350g.
Product size: 66*66*49mm.
*SZM-6745 Series Zoom Stereo Microscope is fully coated optical system with super high resolution.
*It is characterized by brand-new optical design, the best reproduction and true color image. Once brought in focus, image remains clear and sharp throughout the whole zoom range.
*It is ideally suited for industrial as well as for biological research where high precision, maximum working distance and large field coverage is required.
*The flat field parfocal zoom objectives provide continuously variable magnification from 3.35X to 270X depending upon the eyepiece and auxiliary lenses used.
| Weight | 5 kg |
|---|
